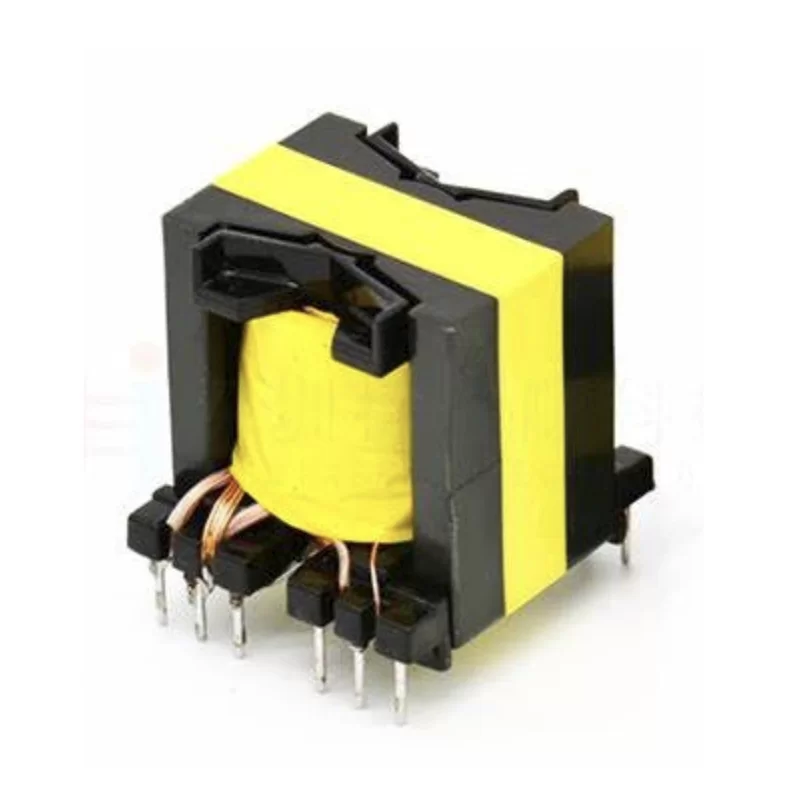

High Frequency Transformer PQ Type
Electronics & appliances

High Frequency Transformer PQ Type

<p>PQ transformers refer to transformers manufactured using PQ-type cores. Their distinctive shape results from an optimized design aimed at achieving maximum power output and minimal electromagnetic interference within a given volume.<br/></p>

SupplierHuizhou Xinchangda Electronic Co.,Ltd.www.xcdmagnetic.com
View on supplier website More from this supplier
Source categories

About this product

Product information from the supplier.

Product Parameters

PQ20PQ26PQ32
PQ35PQ40PQ50

  • Features

    Largest cross-sectional area to volume ratio
    Smallest magnetic path length to volume ratio
    Symmetrical circular casing
    Continuous circular air gap

  • Advantages

    Extremely high power density
    Exceptionally high efficiency
    Minimal electromagnetic interference
    Superior thermal performance

  • Application

    Widely apply in High-end server/workstation power supplies, communication base station power supplies, medical equipment power supplies, automotive charging stations, high-efficiency high-power LED drivers, aerospace power supplies

  • Customization Services

    OEM Manufacturing: Supports bulk production according to customer drawings.

    ODM Design: Provides customized solutions based on requirements (e.g., current, frequency, size).
