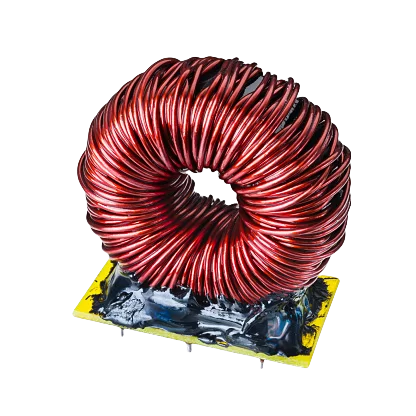

Three-Phase Common Mode Choke
<p>Three-phase common-mode choke, sometimes referred to as a three-phase common-mode choke coil, consists of three identical windings symmetrically wound on a closed magnetic core (typically toroidal or rectangular), corresponding to the A, B, and C phases of three-phase power. Its operating principle is consistent with that of a single-phase common-mode choke, but extended to a three-vector system.<br/></p>
SupplierHuizhou Xinchangda Electronic Co.,Ltd.www.xcdmagnetic.com
Source categories
About this product
Product information from the supplier.
Features
1. Suppresses common-mode noise
2. Minimal differential-mode voltage drop
3. Compact structure with high symmetry requirements
4. Requires high saturation magnetic flux densityAdvantages
1. High space utilization and integration
2. Enhanced cost-effectiveness
3. Consistent and stable filtering performance
4. Exceptional high-frequency noise suppression
Applications
Widely used in variable frequency drives, PV/energy storage inverters, EV charging stations, industrial power supplies, and motor drive systems.Customization Services
- OEM Manufacturing: Supports mass production based on customer drawings.
- ODM Design & Development: Provides customized solutions tailored to requirements (e.g., current, frequency, dimensions).
For specific models or technical specifications, please provide application scenarios and electrical requirements. We will match you with the optimal solution.
