Common-Mode Choke
Electronics & appliances

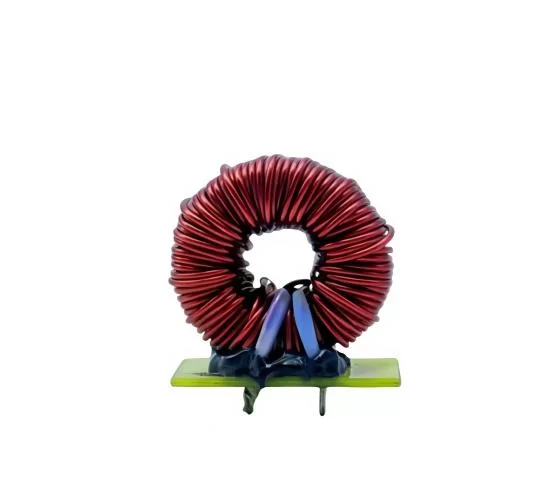

Common-Mode Choke

<p>also known as a common-mode choke coil, consists of two coils with identical turns but opposite winding directions wound around a high-permeability magnetic core. It utilizes the principle of magnetic field superposition and cancellation to suppress a specific type of noise—common-mode noise.<br/></p>

SupplierHuizhou Xinchangda Electronic Co.,Ltd.www.xcdmagnetic.com
View on supplier website More from this supplier
Source categories

About this product

Product information from the supplier.

  • Features

    1. Unique symmetrical winding structure
    2. High permeability magnetic core
    3. Distinctive characteristics for differential-mode and common-mode signals
    4. Frequency dependency

  • Advantages

    1. Highly effective suppression of common-mode electromagnetic interference
    2. Ensures signal integrity and system stability
    3. Facilitates compliance with electromagnetic compatibility regulations
    4. Minimal impact on signal/power performance

  • Applications

    Widely apply in Switching Mode Power Supplies (SMPS), Automotive Electronics, Data Communication & Transmission Lines, Industrial Drives & Automation, Renewable Energy Sector.

  • Customization Services

    - OEM Manufacturing: Supports mass production based on customer drawings.
    - ODM Design & Development: Provides customized solutions tailored to requirements (e.g., current, frequency, dimensions).
    For specific models or technical specifications, please provide application scenarios and electrical requirements. We will match you with the optimal solution.
