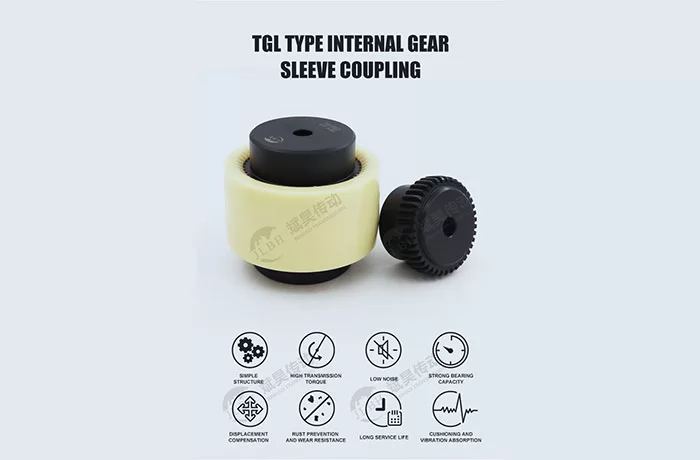

TGL Curved Tooth Teeth Gear Nylon Sleeve Coupling AC DK Bowex

<p>TGL type drum type coupling ‌ designed for small and medium-sized torque transmission ‌ ‌, ‌ 45 # steel outer gear shaft sleeve + nylon inner gear ring ‌ material combination of innovation, while maintaining ‌ 0.5 kg or less m. squared ‌ of low inertia and achieve 15 db (A) ‌, ‌ noise reduction<br/></p>

SupplierJulu County Binhao Transmission Equipment Co., Ltd.www.binhaocoupling.com

View on supplier website More from this supplier

Source categories

TGL Drum Gear Coupling

About this product

Product information from the supplier.

Video

Description

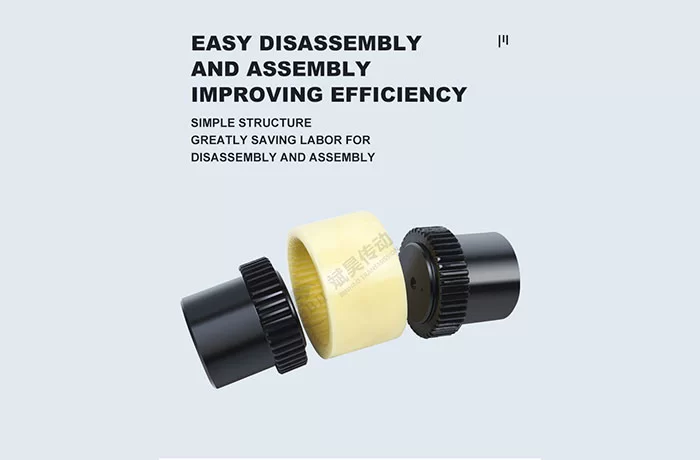

Its ‌ lubrication-free and maintenance-free ‌ feature and ‌ axial plug-in structure ‌ significantly simplify the installation process of equipment such as fans and pumps. Through the optimization of the ‌ drum-shaped tooth profile ‌, the ‌±1.5° angular deviation ‌ can be compensated. In the ‌200-5,000Nm‌ working conditions of textile machinery, lubricating pumps, etc., the self-lubricating property of the nylon tooth surface can prevent metal micro-motion wear, and the service life can reach ‌ 100,000 start-stop cycles ‌. It is an ideal choice for efficient transmission in the light industry field.

Product Features

1.Lightweight and low-inertia design ‌

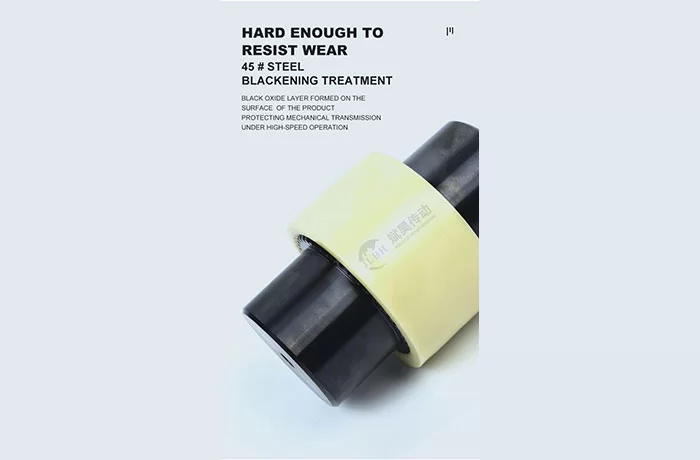

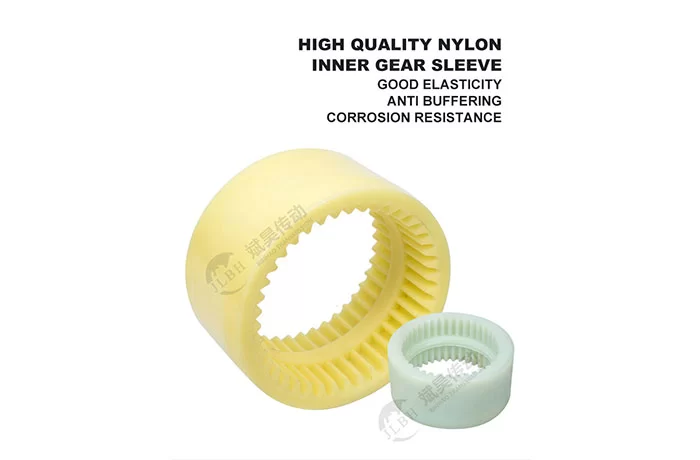

The combination of ‌45 # forged steel external gear sleeve and nylon internal gear ring ‌ is adopted, which reduces the weight by 40% compared with the all-metal coupling. The moment of inertia is ≤0.5kg·m², significantly reducing the motor starting load and saving 5%-8% of energy.

It is applicable to scenarios where ‌ frequently start and stop ‌ (such as textile machinery), reducing energy consumption impact.

2.Silent operation and maintenance-free ‌

The friction coefficient of the nylon tooth surface is only 0.1-0.3, and the operating noise is ≤65dB (A), which is 15dB quieter than traditional metal couplings, meeting the requirements of quiet environments such as ‌ hospitals and ‌ laboratories.

Youdaoplaceholder0 Lubrication-free design ‌ eliminates the risk of grease contamination, requires no maintenance for life, and reduces operation and maintenance costs by more than 30%.

3.High deviation compensation capability ‌

The drum-shaped tooth structure can automatically compensate for ‌±1.5° angular deviation ‌ and ‌±0.5mm radial deviation ‌, adapt to installation errors, and extend the service life of the bearing.

4.Corrosion resistance and long service life ‌

Nylon material is resistant to acids and alkalis and moisture-proof. In humid environments such as chemical plants and ships, its service life can reach ‌ 100,000 start-stop cycles ‌, far exceeding that of ordinary metal couplings.
