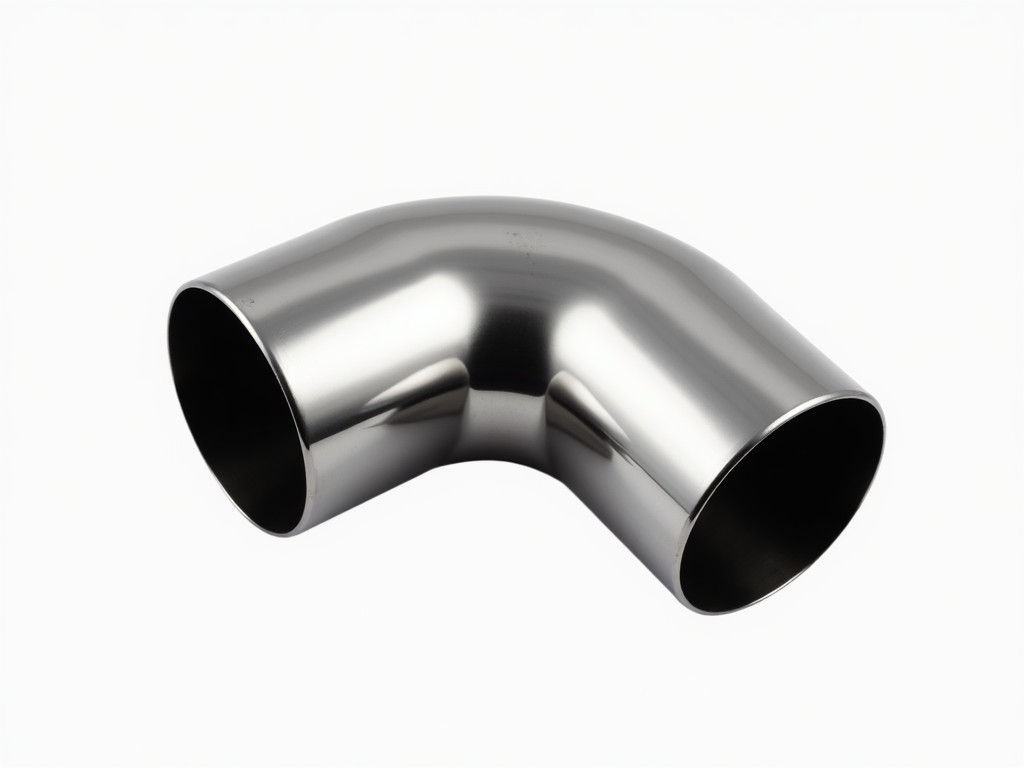

3 inch exhaust pipe 90 degree elbow for car gas | Supplier

Premature Failure: Non-mandrel-bent elbows have 3× higher stress concentration at the inner radius, leading to cracking within 12 months of installation.

Heat Damage: Low-grade 409 stainless loses oxidation resistance above 650°C, while T304 maintains integrity up to 870°C.

Performance Loss: Poorly designed elbows can increase exhaust backpressure by 22–35%, reducing engine horsepower and torque significantly.

Compliance Failures: Non-certified materials (no mill test certificate) risk failing EU vehicle emission tests and US EPA spot inspections.

🔥 T304 Stainless Steel Recommended

• Max temp: 870°C continuous

• Corrosion: Excellent — resists road salt, moisture

• Ductility: High — ideal for mandrel bending

• Cost: Mid-range; best value for premium builds

• Ideal for: Performance cars, marine environments, long-term durability

🔩 T409 Stainless Steel

• Max temp: ~650°C

• Corrosion: Good, but surface rust may appear in harsh salt conditions

• Ductility: Lower than T304 — cracking risk on tight bends

• Cost: Lower price point

• Ideal for: OEM budget replacements, trucks in dry climates

🛡️ Aluminized Mild Steel

• Max temp: ~500°C

• Corrosion: Surface coating can chip, leading to rust

• Cost: Lowest cost option

• Ideal for: Non-heated areas, decorative, or temporary systems

With a 22,000 m² facility and over 15 years of pipe fitting manufacturing experience, we control every step of production — from laser-cutting stainless sheet to mandrel bending, welding, and surface finishing.

1. Material verification: All incoming coils are verified against EN 10204 3.1 material certificates.

2. Precision cutting & mandrel bending: Guarantees no wrinkling on the inner radius or wall thinning beyond 15% of nominal thickness.

3. Robotic TIG welding: Full penetration welds with X-ray inspection on a sampled basis.

4. Heat treatment: Optional annealing for maximum ductility in high-vibration applications.

5. Hydrostatic testing: Each batch is leak-tested at 1.5× rated pressure.

6. Surface finishing & inspection: Visual inspection, dimensional reports (angle, radius, wall thickness) issued with every shipment.

Performance Exhaust

3" mandrel elbows for cat-back exhaust systems produce 13–17 hp gains over factory crimp-bent pipes (verified on chassis dyno tests).

Diesel Truck Downpipe

T409 elbows with 2.5D radius used in diesel downpipes reduce EGT by 35°C under 30,000 lb loads.

Industrial Generator Exhaust

Used in standby generator exhaust piping. T304 material resists condensate corrosion, extending system life to 15+ years.

Marine Exhaust

316L stainless option for saltwater environments prevents pitting and extends service life by 3× versus standard steel.

ISO 9001:2015

Quality Management System

CE Marking

EU Compliance

ANSI / ASME B16.9

Dimensional Standard

US client confirming order

Quality feedback from Europe

Logistics coordination

Q1: What wall thickness should I choose for a 3 inch exhaust pipe 90 degree elbow?

For most street performance applications, 16 gauge (1.5 mm) is sufficient. For off-road, heavy truck, or high-boost forced induction setups, we recommend 14 gauge (2.0 mm) to prevent cracking from vibration and thermal cycling.

Q2: Can you manufacture custom bend radii (2.5D or 3D) for my project?

Absolutely. We offer custom mandrel bending with bend radii from 1.5D up to 4D. Our engineers work alongside your CAD team to ensure the exact CLR and angle tolerance (±0.5°) for precise routing in tight chassis spaces.

Q3: Do you provide material test certificates?

Yes. Every batch of 3 inch exhaust pipe 90 degree elbow fittings can be supplied with EN 10204 Type 3.1 material certificates and mill test reports confirming chemical and mechanical properties. This is crucial for OEMs and for meeting EU/EPA traceability requirements.

Q4: What is your lead time and minimum order quantity?

Stock items ship within 5–7 business days. Custom mandrel-bend orders require 15–20 days. MOQ is just 50 pcs for standard sizes, making it easy for distributors and e-commerce sellers to start with low risk.

Q5: How do you handle shipping to the USA or Europe?

We have consolidated ocean freight partnerships, offering FOB Tianjin, CIF, or DDP terms. For urgent orders, DHL Express or UPS air freight is available with real-time tracking. A 200-pc order ships to Houston, TX within 14–18 days by ocean.

Q6: Do you offer OEM/ODM support including laser engraving and custom packaging?

Yes. We provide OEM/ODM services: laser engraving your SKU/logo, custom barcoding, retail-ready polybag packaging, and even design consultation for complete exhaust systems. Many North American sellers rely on our white-label service to build their brand.

Q7: What warranty do you provide?

We warrant workmanship and material against defects for 12 months from shipment date. If you receive products with dimensional inaccuracy or material defects, we replace them at no cost with the next shipment.
