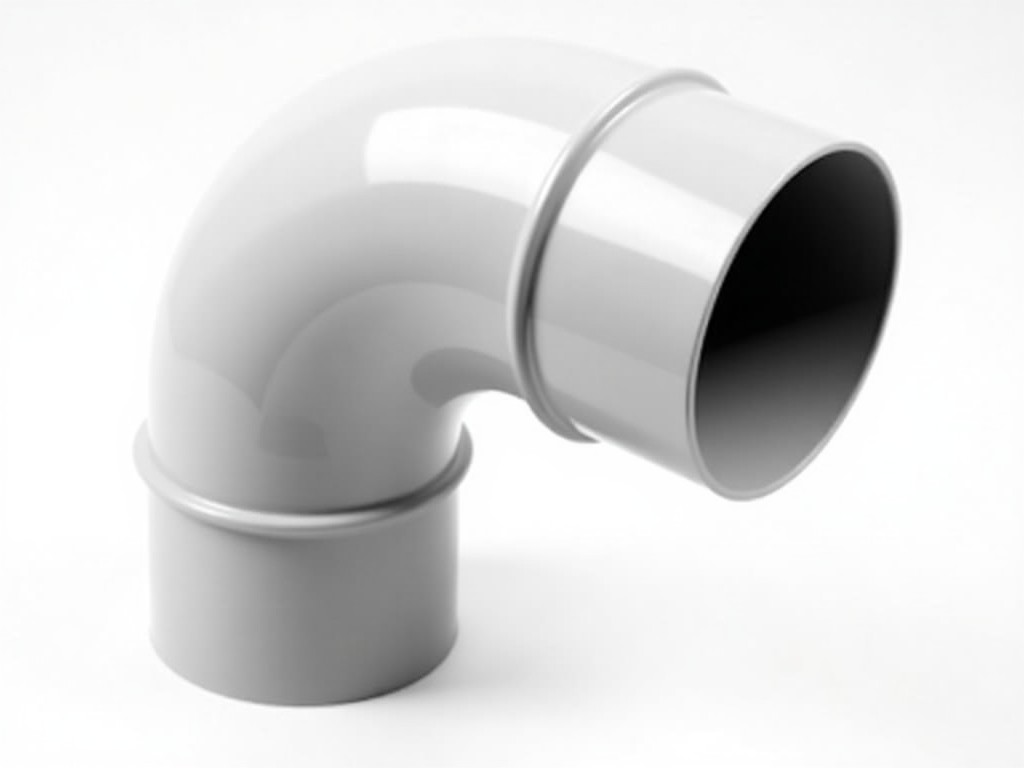

6 45 degree adjustable duct elbow for hvac systems | Wholesale

15–20% Material Waste

"Measure twice, cut once" rarely holds when steel studs and sprinkler lines move. Fixed-elbow installs typicalise galvanized sheet waste rates of 15–20% on rework per duct run.

2–3 Days Site Delay

When a fixed 45° elbow doesn't fit, your crew loses 2–3 days waiting for a replacement. Time overruns directly hit your liquidated damages clause.

3–5% Airflow Leakage

Poorly sealed elbows leak 3–5% of airflow at 1″ w.g., ruining your Test & Balance report and inflating fan energy consumption for the life of the building.

🔧 0°–45° Seamless Adjustment

Lockable pivot joint allows infinite angle increments. No cutting, no shim fabrication, no trip back to the shop.

🛡️ G90 Galvanized Steel, 26–24 Gauge

DX51D+Z hot-dip galvanized steel with G90 coating weight. Corrosion resistance proven in coastal, industrial, and condensation-heavy environments.

🧪 Sealed Joint Design

Rolled lip and EPDM gasket option achieve Class A (SMACNA) airtightness — tested to less than 3% leakage at 4″ w.g.

⚡ Tool-Free Angle Lock

Quarter-turn shear clamp locks the angle in seconds. Torque-certified for up to 10″ w.g. static pressure.

🏬 US Commercial Office – Chicago, IL

Contractor: Mid-size mechanical (280k sq ft HVAC retrofit)

• 317 pcs adjustable elbows used

• Zero re-cut duct sections

• Installed in 11 days vs 18 planned

• Saved ~$22,000 in labour

🏭 German Industrial Ventilation

Plant Engineer: Automotive parts plant, paint shop exhaust

• 6″ elbows with EPDM gaskets

• Passed TÜV smoke-tightness test

• Ongoing 3-year corrosion warranty

🏥 Canadian Hospital RTU Upgrade

Mechanical PM: Rooftop unit AHU connections, 34 elbows

• Installed in one shift

• Leakage test: 1.8% at 4″ w.g.

• Final TAB pass on first try

ISO 9001 Quality Management System

UL 181 Listed for Safety & Performance

Cangzhou Weihuan Pipeline Equipment Co., Ltd. — Main Facility

Cangzhou Weihuan Pipeline Equipment Co., Ltd. is a platform-based supply chain enterprise with focused expertise in the sales of pipes and pipe fittings — including duct elbows, flanges, steel pipes, tees, reducers, and malleable cast iron (MCI) fittings.

• Export reach: 20+ countries — USA, Russia, Canada, Kazakhstan, Algeria, Middle East, South Asia, Africa, Europe

• Production capacity: 250,000+ duct fittings / month

• One-stop supply: elbows, tees, reducers, flanges, MCI fittings, steel pipe — all in a single consolidated shipment

• QC personnel: 15+ QC inspectors across 3 in-process checkpoints

• OEM/ODM: Custom dimensions, logo engraving, material grade changes, private-label packaging

Mike R.

Mechanical Contractor, USA

"We ordered 500 pcs of the 6″ adjustable elbows for a Chicago high-rise. The angle adjustment saved us nearly two weeks of rework. Their QC paperwork was immaculate — every lot came with a pressure test report."

Lars V.

HVAC Wholesale Distributor, Netherlands

"We switched from a local supplier to Weihuan because their wholesale price was 32% lower. Quality is consistent, and the packaging prevents transit damage. We've placed 6 repeat orders this year."

Sarah T.

Procurement Manager, Canada

"The G90 galvanized coating has held up perfectly in our coastal climate. Their team helped us custom-brand the elbows for our retail line — the OEM process was smooth end-to-end."

About the Author

David Zhang — Senior Product Engineer, HVAC Ducting Division, Cangzhou Weihuan Pipeline Equipment Co., Ltd.

12 years in HVAC fittings manufacturing and international pipe-fitting sourcing. Certified welding inspector (ISO 9712) and member of the Chinese Society for Metals. David leads Weihuan's product engineering team and has overseen more than 300 custom OEM duct-fitting projects for North American and European buyers.

He is the author of the internal technical handbook Duct Elbow Selection for Low-Turbulence Airflow, used by Weihuan's engineering consultants.
