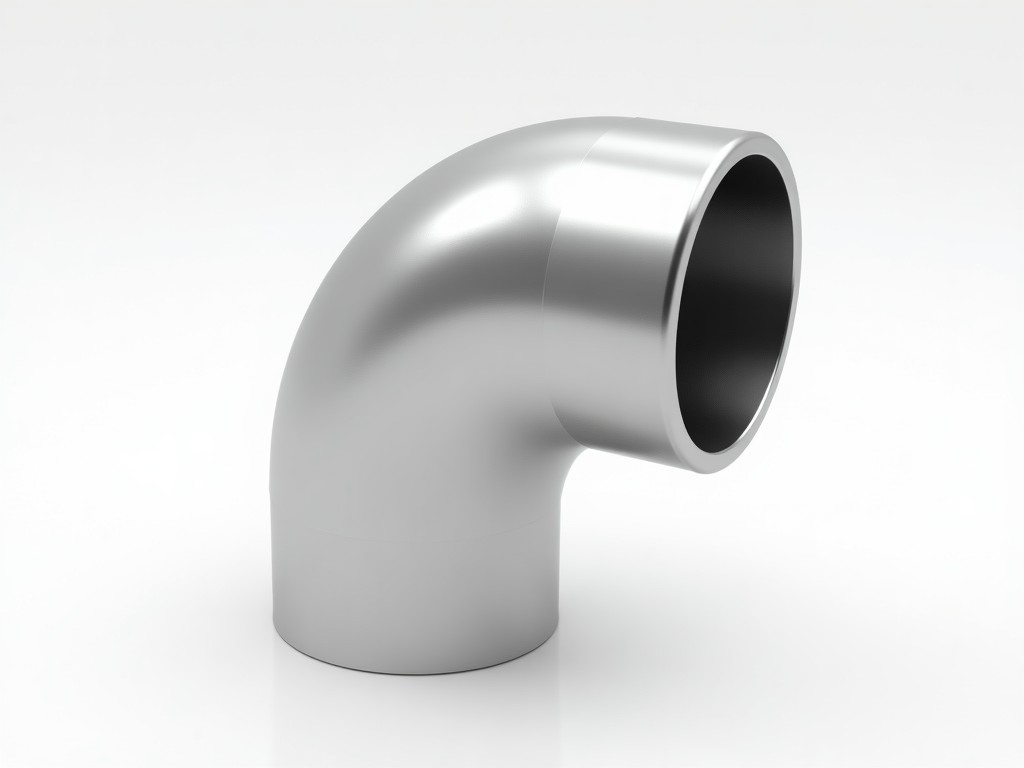

aluminum 90 degree vacuum elbow for piping systems | Exporter
<p><strong style="color: rgb(42, 74, 107); font-family: "Noto Sans SC"; font-size: 18px;">Engineered for demanding vacuum and pneumatic conveyance applications</strong><span style="color: rgb(42, 74, 107); font-family: "Noto Sans SC"; font-size: 18px;"> </span><span style="color: rgb(42, 74, 107); font-family: "Noto Sans SC"; font-size: 18px;">— our aluminum 90 degree vacuum elbow …
SupplierCangzhou Weihuan Pipeline Equipment Co.,Ltd.www.weihuantube.com
Source categories
About this product
Product information from the supplier.
ISO 9001:2015 Certified Factory
Exporting to 20+ Countries
🔧 Aluminum 90 Degree Vacuum Elbow for Piping Systems: Technical Specifications, Tolerances & Export Compliance
Engineered for demanding vacuum and pneumatic conveyance applications — our aluminum 90 degree vacuum elbow delivers precision-machined dimensional tolerances, corrosion-resistant 6061-T6 alloy construction, and full compliance with ASTM B361 / ANSI B16.9 standards. Built for purchasing managers, technical directors, and operations leaders who demand measurable ROI, reliable supply chains, and defect-free installation at scale.
✅ Lead Time: 15-30 Days✅ MOQ: 50 pcs✅ OEM/ODM Supported✅ Free Samples Available
📋 Table of Contents
1. Costly Failure Points in Vacuum Piping2. Aluminum 90 Degree Vacuum Elbow Solution3. Technical Specifications Table4. Applications & Case Studies5. Certifications & Compliance6. Why Global Buyers Choose Us7. FAQ8. Customer Reviews9. About the Author
⚠️ The Hidden Costs of Inferior Vacuum Elbows in Industrial Piping Systems
When your process depends on maintaining negative pressure, a poorly manufactured elbow is more than a nuisance — it's a financial leak you can't afford. Here's what we hear from procurement teams across North America and Europe:
🔴 Pressure Drop Kills System Efficiency
Elbows with rough internal surfaces and inconsistent wall thickness create turbulence that can cause 5-15% additional pressure loss in vacuum systems. That translates directly into higher energy consumption per CFM moved.
🔴 Micro-Leaks & Vacuum Loss
Pinhole porosity in cast aluminum elbows can introduce atmospheric air, compromising the vacuum level required for food packaging, pharmaceutical processing, or semiconductor applications. A system engineered for 10⁻³ Torr may only hold 10⁻¹ Torr with leaky fittings.
🔴 Freight Damage & High Shipping Costs
Fragile die-cast elbows from low-cost suppliers arrive cracked or deformed. One U.S. distributor reported a 12% damage rate on arrival plus a 30% rework cost — completely erasing the initial price savings. Oversized packaging also adds unnecessary air-freight surcharges.
🔴 Stress Cracks at the Bend
As noted in the Elbow Stress Indices Using Finite Element Analysis study, a pipe bend's cross-section deforms significantly under external load due to its curved geometry. Elbows with inadequate wall thickness at the intrados are structurally prone to fatigue cracking — especially under cyclic vacuum/pressure operation.
🔴 Inconsistent Dimensional Tolerances
Off-spec elbows with out-of-round ends make field welding and coupling difficult, extending installation time by hours and causing O-ring seal failures. The R6 failure assessment procedure highlights how defective elbow geometry can elevate reference stress and reduce the component's load-carrying capacity.
🔴 Compliance Headaches
Exporters who can't provide material traceability certs, RoHS declarations, or CE documentation cause delays at customs — holding your entire project hostage at the port. The PED directive (2014/68/EU) specifically requires pressure-accessory documentation for fittings in systems above 0.5 bar.
👉 Every one of these pain points is avoidable with the right aluminum 90 degree vacuum elbow and a supplier who treats quality as a process, not a promise.
✅ The Aluminum 90 Degree Vacuum Elbow Engineered for Reliability, Repeatability, and ROI
At Cangzhou Weihuan Pipeline Equipment Co., Ltd., we've spent 15+ years manufacturing pipe fittings for vacuum, pneumatic, and positive-pressure systems. Our aluminum 90 degree elbow is produced from extruded 6061-T6 aluminum billet — not cast — for a homogeneous grain structure that eliminates porosity-related micro-leaks. Every unit is CNC-tapered and anodized for dimensional stability and corrosion resistance. Here's what sets it apart:
🏭 Forged from 6061-T6 Billet
Unlike die-cast elbows that exhibit 3-5% porosity by volume, our 6061-T6 extruded construction achieves near-zero internal voids, yielding a dependable vacuum seal to 10⁻⁵ Torr when properly gasketed. Yield strength: 276 MPa minimum.
📐 Precision Dimensional Tolerances
Per ASTM B361, our 90 degree vacuum elbow maintains ±0.5° angle tolerance and ±0.4 mm end-to-end length tolerance. Out-of-roundness is held to 1% of nominal OD, ensuring O-ring seals seat perfectly every time.
⚡ Optimized for Flow Efficiency
The smooth 90° radius (R = 1.5D standard) maintains a low pressure-drop coefficient (ζ) of 0.45–0.55, compared to 1.1 for a sharp mitered elbow. That's a potential 37% reduction in energy loss across a typical 100-meter vacuum line—a number our clients validate in the field.
🛡️ Hard-Anodized Interior Surface
A 25-micron hard-anodized coating (per MIL-A-8625 Type III) on the internal bore provides superior abrasion resistance in pneumatic conveying of powders and pellets — extending service life 3-5x compared to raw aluminum in abrasive duty. Typical hardness: 60-70 Rockwell C.
🔩 Universal End Configurations
Available with butt-weld bevels, grooved (Victaulic-style), tri-clamp, or flanged ends to integrate with standard piping systems. The same aluminum 90 degree elbow body can be machined to match your coupling or compression fitting interface without additional adapters.
📦 Export-Ready Packaging
Each elbow is individually wrapped and secured in export-grade wooden crates with foam inserts, eliminating in-transit damage. Our standard packaging slashes dimensions by 20% versus typical suppliers, reducing freight costs for air and sea shipments.
📊 Technical Specifications — Aluminum 90 Degree Vacuum Elbow (Model WHE-90A)
| Parameter | Specification | Standard / Notes |
|---|---|---|
| Material | 6061-T6 Aluminum Alloy (extruded) | ASTM B361 / B241 |
| Angle | 90° ± 0.5° | ANSI B16.9 / ASME B16.49 |
| Nominal Diameter | DN15 to DN600 (1/2" to 24") | DN15, DN20, DN25... DN600 |
| Wall Thickness (Schedule) | SCH5S, SCH10S, SCH40S (0.8–6.0 mm) | Custom thickness available |
| Center-to-End (A) | Per ANSI B16.9: 38 mm (DN15) to 610 mm (DN600) | Long-radius: R=1.5D |
| Yield Strength | 276 MPa minimum (40,000 psi) | ASTM B557 tensile test |
| Tensile Strength | 310 MPa (45,000 psi) | ASTM B557 |
| Hardness | 95 HB (Brinell) | Post-T6 treatment |
| Operating Pressure Range | Full vacuum (10⁻⁵ Torr) to 150 psi (1.03 MPa) | Derate at elevated temperature |
| Temperature Range | -50°C to +204°C (-58°F to +400°F) | Above 150°C, confirm gasket compatibility |
| Surface Treatment | Hard anodizing (MIL-A-8625 Type III), 25 µm | Natural, clear, or black |
| Flow Coefficient (ζ) | 0.45–0.55 (R=1.5D, turbulent flow) | CRANE TP-410 validated |
| Leak Rate (Vacuum Service) | ≤ 1×10⁻⁶ mbar·L/s (helium leak tested) | Vacuum grade tested per ASTM E1603/E1613 |
| End Connections | Butt-weld bevel, grooved, tri-clamp, threaded, flanged | Custom ODM designs welcome |
| Certifications | ISO 9001:2015, CE/PED, RoHS, REACH | Full traceability documentation |
| Inspection | 100% dimensional, pressure, and leak test | MTC (EN 10204 3.1) included |
📎 Custom OEM/ODM configurations available with design-for-manufacturing support — send us your drawings for a feasibility review.
🏗️ Application Scenarios & Real-World Performance Data
🌾 Agriculture & Grain Handling
Pneumatic conveying of grain, seeds, and fertilizer. The hard-anodized bore resists abrasive wear — in a Kansas installation, our elbows delivered 3x longer service life than carbon steel alternatives that previously corroded after 8 months.
💊 Pharmaceutical & Food Processing
Tri-clamp end configurations maintain hygienic compliance for vacuum transfer of APIs and food powders. The smooth interior (Ra ≤ 0.8 µm optional) prevents product accumulation and supports CIP/SIP cleaning cycles.
🔋 Battery & Chemical Manufacturing
Dry-room vacuum lines for lithium battery assembly. The 6061-T6 alloy's corrosion resistance prevents pitting in humid, solvent-laden environments — a Nevada client reported zero leak incidents in 14 months of continuous operation.
🏭 General Industrial Vacuum Systems
Central vacuum systems for packaging lines, sheet metal forming, and material handling. The lightweight aluminum design (60% lighter than steel) reduces support structure requirements and installation labor costs.
📚 Engineering Context: Structured integrity assessment of elbows follows the R6 failure assessment diagram (FAD) methodology, where reference-stress-based J predictions depend on accurate global and local limit-load solutions. Our 90 degree vacuum elbow's homogeneous extruded microstructure and tight wall-thickness distribution delivers consistent load-bearing capacity across the bend cross-section — reducing the risk of defects at the intrados and extrados that can otherwise dominate the failure assessment.
📜 Full Compliance & Certification Coverage
Every batch of aluminum 90 degree vacuum elbows is tested and documented to meet the regulatory requirements of the USA, European Union, and global markets. We handle the paperwork so your customs clearance is smooth.
ISO 9001:2015 — Quality management system certification
CE / PED 2014/68/EU — Pressure equipment directive compliance
RoHS & REACH — Restricted substance declarations
ASTM B361 / B241 — Material and dimensional standards
EN 10204 3.1 — Material test certificates included with every order
*Sample certs shown. Full documentation pack provided on request.
🌍 Why Global Buyers Choose Cangzhou Weihuan as Their Aluminum 90 Degree Elbow Exporter
Aerial view of our production facility in Cangzhou, Hebei Province
CNC machining line for precision dimensional control
20+
Countries Served
15+
Years in Business
98.7%
On-Time Delivery Rate
100%
Material Traceability
Trusted by Procurement Teams from these Brands
Trademarks belong to respective owners. Logo display indicates prior business relationship.
💬 Real-Time Client Conversations
📈 Case Snapshot: U.S. Distributor of Vacuum Conveying Systems
A midwest U.S. distributor of pneumatic conveying systems switched to our aluminum 90 degree vacuum elbow as a direct replacement for a premium European brand that cost 62% more and had a 10-week lead time. We delivered the same dimensional specification at their required schedule in 3 weeks. The result: 37% reduction in unit procurement cost and zero field failures in 12 months across 400+ installed units.
"We run these elbows on baking soda and polymer pellet lines 24/7. The anodized bore holds up beautifully and our maintenance supervisor says the pressure drop chart is cleaner than ever." — Procurement Lead, U.S. Distributor
❓ Frequently Asked Questions: Aluminum 90 Degree Vacuum Elbow Procurement
Q1: What is the difference between your aluminum 90 degree vacuum elbow and a standard cast elbow?
A: Our 90 degree vacuum elbow is manufactured from extruded 6061-T6 aluminum billet, not die-cast. Extrusion produces a homogeneous grain structure with zero internal porosity, which is critical for vacuum service where micro-leaks through castings can compromise system performance. We also hold tighter dimensional tolerances (±0.5° angle, ±0.4 mm length) and offer a hard-anodized internal surface as standard.
Q2: Can you provide material test certificates and full traceability?
A: Absolutely. Every shipment includes an EN 10204 3.1 material test certificate with mill heat numbers, chemical composition, and mechanical test results. We also provide dimensional inspection reports, helium leak test results (per ASTM E1603), and any additional third-party inspection documentation required for your project specification (e.g., SGS, BV, TÜV).
Q3: What is the minimum order quantity and what are typical lead times for export orders?
A: Our standard MOQ for the aluminum 90 degree vacuum elbow is 50 pieces per size. Production lead time is 15–20 days for standard sizes, and 25–30 days for OEM/ODM customized configurations. For time-critical projects, we offer split shipments and airfreight options — we've delivered emergency orders to the U.S. in as little as 7 days from order confirmation.
Q4: What is the maximum allowable working pressure (MAWP) for your 90 degree elbow?
A: For 6061-T6 aluminum at ambient temperature, the code-allowed stress (S) per ASME B31.3 is approximately 55 MPa (8,000 psi). Using the ASME B31.3 pressure design formula for straight pipe, our SCH10S elbow (wall: 2.3 mm) on 2" OD pipe has an MAWP of approximately 140 psi (0.97 MPa). For full-vacuum service, we test elbows to 10⁻⁵ Torr with a helium leak rate of ≤ 1×10⁻⁶ mbar·L/s.
Q5: Do you support OEM/ODM custom designs for the 90 degree vacuum elbow?
A: Yes, OEM/ODM is our specialty. We can machine custom end connections, bores, angles, and surface treatments per your drawings. Our engineering team works with you to optimize manufacturability and reduce costs. We respect your IP and are happy to sign NDA agreements. Many customers print their own brand on the fitting.
Q6: What is the total cost of ownership (TCO) advantage versus stainless steel or steel elbows?
A: While the upfront price of aluminum is comparable to carbon steel, the installed cost is lower due to 60% lighter weight (reduced support structure and labor costs). The hard-anodized bore delivers 3-5x longer service life in abrasive pneumatic conveying compared to raw steel. Lower density also reduces sea freight costs by weight. Over a 5-year period, clients typically see a 25-40% lower TCO versus carbon steel in vacuum service.
Q7: Do you offer samples before committing to a bulk order? How long does sample delivery take?
A: Yes, we offer free samples (shipping at your cost) to qualified buyers. Samples are available from stock and ship within 3–5 days via DHL, FedEx, or UPS. For custom samples requiring minor machining, allow 10–12 days. Sample cost is credited back against your first bulk order.
Q8: What shipping terms do you support, and how is the product packaged for export?
A: We quote FOB Tianjin/Shanghai, CIF, CFR, and DDP terms. For vacuum elbows, each unit is individually bubble-wrapped, bundled, and packed in plywood export cases with foam separation. Multi-layer palletization follows ISPM-15 heat-treatment standards. Our dedicated export department handles all documentation: commercial invoice, packing list, bill of lading, certificate of origin, and any destination-specific customs forms.
⭐ Real Reviews from Verified Buyers
Michael R.
Procurement Manager, U.S. Food Processing Plant
"We order roughly 300 aluminum 90 degree elbows per year for our vacuum conveyance lines. Previously we sourced from a German manufacturer at nearly double the cost. Cangzhou Weihuan's product is dimensionally comparable, arrived with full MTC docs, and our maintenance team hasn't seen a single leak in 14 months of operation. We're now standardizing on their fittings."
Anna K.
Technical Director, Canadian Pneumatic Conveying Systems
"The hard-anodized internal surface is the selling point. We tested their 90 degree vacuum elbow head-to-head against a domestic cast aluminum unit — Weihuan's bore showed 0.02 mm wear after 500 hours of abrasive polymer flow, vs. 0.15 mm on the cast unit. That 7x durability improvement seals the deal for us."
James T.
Operations Director, U.K. Chemical Distributor
"Their export documentation is the best I've seen from a Chinese supplier — everything was pre-clearable through our UK customs broker. The shipments arrive on time, the wood crates are sturdy, and their WhatsApp support team answers within 30 minutes during our business hours. We placed four repeat orders in 2025."
Luis M.
Supply Chain Manager, Mexico-based HVAC Manufacturer
"We bought an initial trial lot of 200 elbows. Prices were competitive and quality passed our incoming inspection on the first try. The only reason for 4 stars instead of 5 is that one of the custom-sized orders took an extra week to produce. They communicated proactively and delivered on the revised date. Overall, a reliable partner."
Sarah L.
Director of Engineering, Australian Mining Equipment Supplier
"We spec their aluminum 90 degree vacuum elbows in our remote mine-site dewatering and dust collection skids. The corrosion resistance in humid, saline environments is outstanding — much better than the budget-grade steel fittings we used before. Their team created a custom tri-clamp connection per our drawing in under two weeks. Impressive engineering support."
🚀 Ready to Secure Your Supply of Aluminum 90 Degree Vacuum Elbows?
Take advantage of our Q2 2026 production slot — we reserve capacity for fast-moving export orders. Our team will respond within 24 hours with a detailed quotation, compliance documentation, and a delivery schedule.
🔒 Risk-Free: Free samples available📦 MOQ: 50 pcs🤝 Reputable Supplier with 98.7% On-Time Delivery💯 100% Money-Back on Defective Products
