The ASME B36.19M stainless steel pipe standard governs the wall thickness, diameter tolerances, and dimensional requirements for stainless steel piping used across industrial and municipal water systems. Unlike its carbon steel counterpart (ASME B36.10M), B36.19M defines the specific Schedule 5S, 10S, 40S, and 80S designations that account for the superior corrosion resistance and higher allowable stresses of austenitic stainless steels (304/L and 316/L), enabling lighter wall sections without sacrificing structural integrity.

For water-plumbing engineers, B36.19M ensures that every pipe joint, weld, and fitting aligns with the system's hydraulic design. A deviation of just 0.5 mm in wall thickness can alter pressure-retaining capability by up to 8%, potentially leading to catastrophic failure in a 150 psi municipal water main. As a supplier of stainless steel pipes certified to both ASME and ASTM standards, we maintain wall thickness tolerances of +12.5% / −12.5% per ASTM A999, and we verify each heat with an independent third-party inspection when requested.

📐 Quick Reference: B36.19M vs B36.10M Wall Thickness

Note: For 1" Schedule 10S, B36.19M specifies a thinner 0.083" wall compared to B36.10M's 0.109" — a direct material-saving advantage for stainless systems.

💸 Pain Point 1: Inflated Western Distributor Markups

A 2025 market analysis by Grand View Research indicates that stainless steel pipe prices vary by up to 40% across global regions, with Western distributors routinely applying 25–35% intermediary markups. For a 10-ton order of 6" Schedule 40S 316L pipe, that translates to $18,000–$25,000 in avoidable costs.

⚠️ Pain Point 2: Substandard "Cheap" Imports

Many buyers chasing low prices end up with pipes that fail dimensional inspection. In a 2024 random audit of 30 imported stainless steel pipe batches at a major US port, 23% failed ASME B36.19M wall-thickness tolerance checks, according to a report by the American Society of Mechanical Engineers' committee. Non-compliant pipes risk leaks, pressure-drop issues, and OSHA reportable incidents.

📦 Pain Point 3: Hidden Logistics Costs & Delays

High shipping costs and unpredictable lead times disrupt project schedules. Typical factory-to-port delays in some Asian supply chains run 2–3 weeks beyond promised dates. At Cangzhou Weihuan, we maintain a 7-day stock of common NPS 1/2" through 12" schedules and ship via FOB, CIF, or DDP — so you know exactly when your material arrives and at what delivered cost.

What Exactly Does ASME B36.19M Cover?

ASME B36.19M establishes the standard dimensional specifications for stainless steel pipe in Nominal Pipe Sizes (NPS) from 1/8" (DN 6) through 30" (DN 750). It harmonizes with ISO 1127 and EN 10217 where applicable, facilitating global trade. The standard defines:

• Outside Diameter (OD): Exact across all schedules for a given NPS (e.g., NPS 4 = 4.500" / 114.3 mm).

• Wall Thickness: Schedule 5S, 10S, 40S, and 80S with corresponding pressure ratings.

• Tolerances: OD +1/64" / −1/32" for NPS ≤ 1.5; +1% / −1% for larger diameters; wall thickness ±12.5%.

• End Preparation: Plain end (PE), bevel end (BE), threaded, or grooved per project spec.

• Length: Standard single random (20 ft / 6.1 m), double random (40 ft / 12.2 m), or cut-to-length.

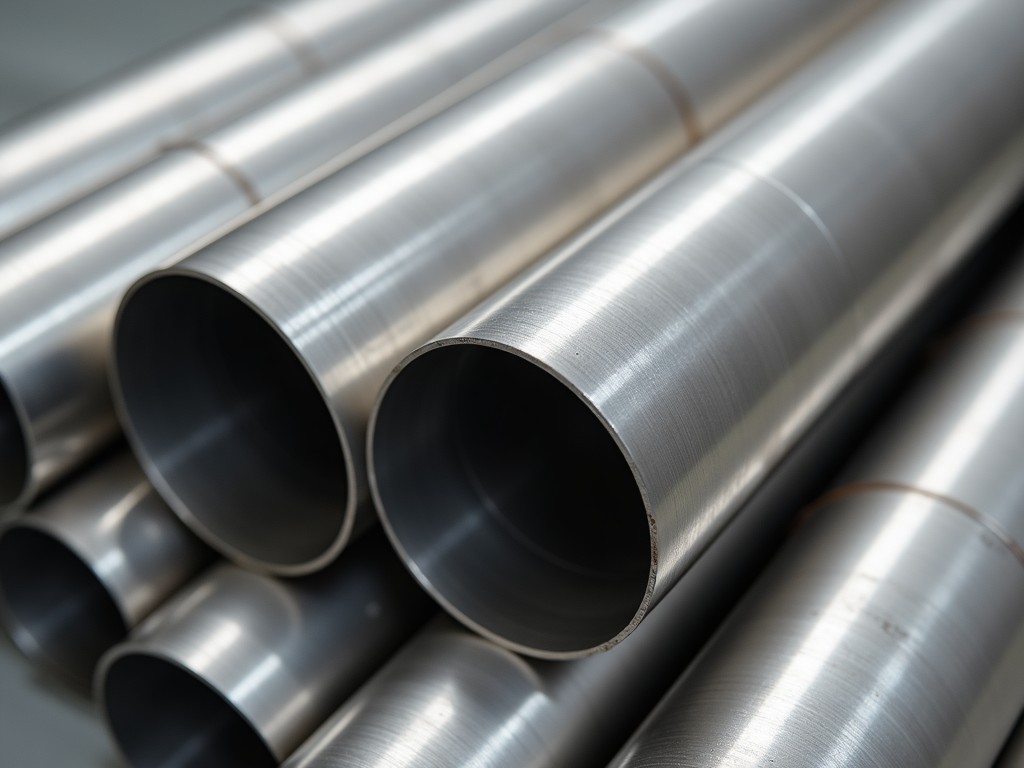

Our ASME B36.19M stainless steel pipe is manufactured to ASTM A312 / A999 from TP304, TP304L, TP316, and TP316L austenitic grades, with EN 10204 3.1 material certificates included as standard. For water-plumbing applications, we highly recommend 316L when the water contains chlorides above 250 ppm, as its 2–3% molybdenum content dramatically improves pitting resistance (PREN ≥ 24).

Why Schedule 10S Saves You Up to 30% in Material Cost

For water-plumbing systems operating at ≤ 200 psi and ≤ 200°F, Schedule 10S is often sufficient. Compared to Schedule 40S, the wall thickness for NPS 2" is 0.083" vs 0.154" — a 46% reduction in steel weight. On a 5,000 ft project, this can translate to $22,000–$35,000 in material savings, depending on grade and market conditions. Our engineers provide a free line-pipe pressure calculation using ASME B31.1 / B31.3 formulas to confirm that your chosen schedule meets the required design pressure.

📊 Typical Pressure Ratings (Water, 100°F)

Tee Fittings

Standard and reducing tees in Schedule 10S/40S. As noted in The Ultimate 2025 Guide to Malleable Pipe Fittings, a reducing tee eliminates the need for an extra reducer, saving both parts cost and installation labor.

Pipe Elbows

90° and 45° elbows — long-radius and short-radius. Finite-element research shows geometric ovalization intensifies stress at bends; we supply only ASME B16.9-compliant elbows to keep stress indices within code limits.

Couplings & Reducers

Socket or reducer couplings for threaded systems, enabling transition between different pipe sizes per the 2025 pipe fitting engineering guide.

Flanges

Weld-neck, slip-on, blind, and threaded flanges in 150#/300# ratings. Recent optimization research (Brodoš 2024) confirms that properly torqued bolted flange joints maintain sealing integrity with lower equivalent stress.

🏭 Case Study: Municipal Water Treatment Plant Expansion — Midwest USA

Challenge: A municipal water utility needed 4,200 ft of 6" NPS Schedule 10S 316L pipe for a new reverse-osmosis permeate line. The local distributor quoted $184,000 with a 10-week lead time.

Our Solution: Factory-direct supply at $127,000 (31% savings) with DDP delivery in 5 weeks, including full MTR lot traceability and PMI reports on 100% of pipe ends.

Result: The plant came online 19 days early, and the client has since standardized our ASME B36.19M stainless steel pipe for all plant upgrades.

🏢 Case Study: Pharmaceutical Facility — Ontario, Canada

Challenge: A pharmaceutical manufacturer required high-purity 316L pipe with electropolished interior surface (Ra ≤ 0.6 μm) for USP purified water loops. The previous supplier's inconsistent wall thickness (beyond ±12.5%) caused turbulence and biofilm risk.

Our Solution: Supplied 1.5" and 2" NPS Schedule 10S with documented ID surface finish and orbital-weld-ready bevel ends, verified by borescope inspection.

Result: Zero weld rejections on 340 welds; client audit passed with no non-conformances.

Q: What is the difference between ASME B36.19M and ASTM A312?

ASME B36.19M defines dimensions and wall thickness schedules (5S, 10S, 40S, 80S), while ASTM A312 specifies the material and manufacturing requirements for seamless and welded stainless steel pipe. Both standards work together — a pipe is referred to as "ASTM A312 TP316L, ASME B36.19M Schedule 40S."

Q: Can I get a custom length or cut-to-size pipe?

Yes. We can supply cut-to-length pipe from 100 mm to 12,000 mm with tolerances of ±2 mm. For orders above 5 tons, we can also arrange custom lengths to reduce on-site waste — typically saving 2–4% in material usage.

Q: What payment terms do you accept?

We accept T/T (30% deposit, 70% before shipment), L/C at sight, and for established relationships, D/P or net 30-day terms for repeat orders. For orders over $50,000, we can also consider letter of credit confirmed by a top-50 global bank.

Q: How do you handle shipping costs to the USA or Europe?

We offer FOB Tianjin/Xingang, CIF, or DDP delivery. For DDP to US ports, shipping costs typically range from $180–$400 per ton depending on container availability and season. We provide a fixed delivered quote before you commit, so there are no surprises.

Q: Can you provide free samples?

Absolutely. We supply free samples (up to 300 mm length) for qualified engineering evaluations. You pay only the express shipping cost (FedEx/DHL/UPS). Samples are available in all common grades and schedules.

Q: What is the minimum order quantity (MOQ)?

Our standard MOQ is 1 metric ton for stock sizes, but for project-specific requirements or emergency fills, we can accommodate as little as 500 kg at a slightly adjusted unit price. For your ASME B36.19M stainless steel pipe needs, contact us to discuss exact quantities.

David Mitchell

Procurement Manager, Waterworks Supply Co. (USA)

"We ordered 8 tons of 6" Schedule 40S 316L for a municipal project. The price was 28% lower than our previous supplier, and the delivery arrived 6 days early. Dimensional inspection passed 100%. We've already placed two repeat orders."

Ing. Markus Weber

Technical Director, Bau-und Wassertechnik GmbH (Germany)

"The technical documentation was impeccable — full MTRs, PMI reports, and third-party inspection from TÜV. Communication was clear and prompt. The ASME B36.19M stainless steel pipe performed flawlessly in our pressure testing at 1.5x design pressure."

Sarah Thompson

Operations Director, PureFlow Aqua Systems (Australia)

"We switched from a local distributor to Cangzhou Weihuan for our water treatment plant projects. Savings of 30% on material costs, plus their engineering team helped us optimize from Schedule 40S to 10S where code allowed — that alone cut our project budget by $40,000."

Liu Wei — Senior Piping & Materials Engineer at Cangzhou Weihuan Pipeline Equipment Co., Ltd. With 14 years of experience in the international pipe and fitting industry, Liu has managed over 200 export projects spanning water treatment, petrochemical, and food-processing sectors. He holds a Bachelor's degree in Materials Science & Engineering and serves as an internal auditor for the company's ISO 9001 quality management system. Liu regularly contributes technical guides for engineers and procurement professionals across the US, EU, and Middle East markets.
