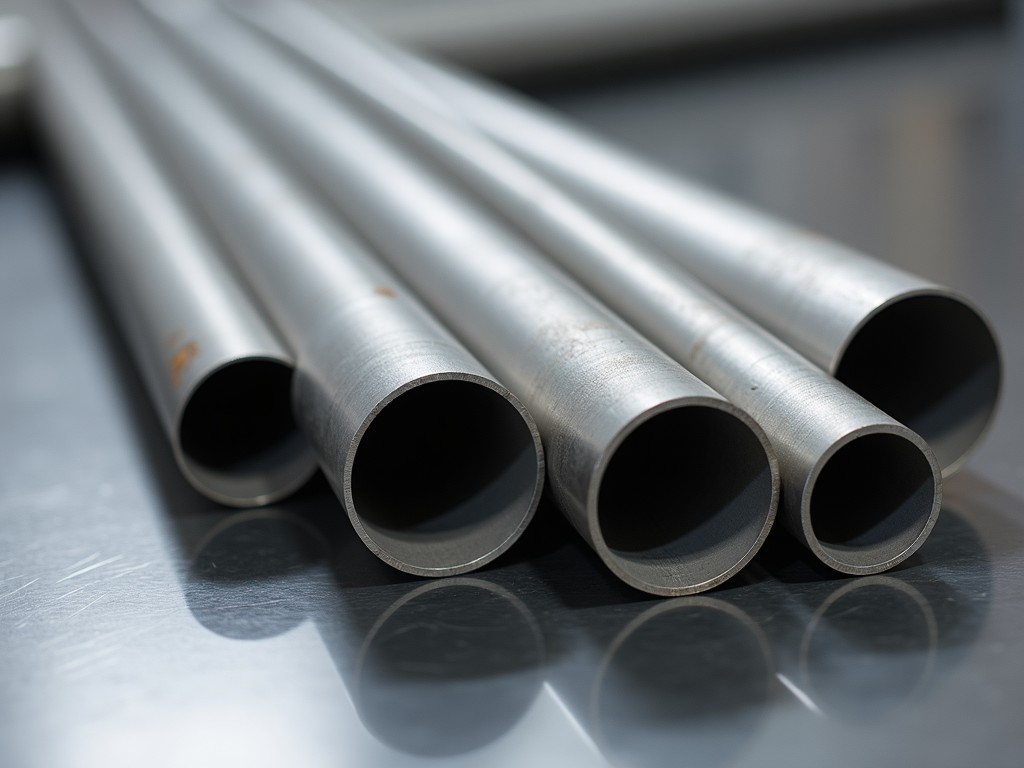

asme b36 19 stainless steel pipe for industrial gas | Exporter

🔍 Did you know? ASME B36.19 also correlates with ASTM A312/A358 material specifications. When your purchase order states "ASME B36.19 – ASTM A312 TP316L Seamless," the factory must deliver pipe with both the dimensional standard and the material/process standard called out — a non-negotiable for gas-sector QA departments.

📐 Engineering note: As highlighted in research on Sustained Stress Indices at Tee Connections in Piping Systems, the accuracy of pipe dimensions directly impacts stress intensification factors calculated in beam-type piping analysis per ASME B31 codes. Off-tolerance pipe alters the stress distribution model, potentially producing unsafe flexibility calculations in gas compressor stations.

🔬 Material selection insight: A 2025 study published in Cureus Journal of Engineering on Performance Material Selection in Rigid Flange Coupling Systems confirms that optimizing material choice against operating conditions reduces both over-specification waste and in-service failure risk. When specifying your next order, evaluate the gas composition, operating temperature, and chloride exposure before defaulting to 316L — a 304L pipe may safely satisfy the application at a 12–18% lower material cost.

🚀 Our capacity advantage: We reserve 35% of monthly production for export orders. This means your ASME B36.19 stainless steel pipe is not competing with domestic Chinese demand — we guarantee contractual lead times with liquidated damages clauses for delays.

Situation: A Texas-based gas storage operator needed replacement piping for a 15-year-old gathering line. The original pipe (imported from another supplier) had failed hydrostatic testing due to pitting corrosion.

Our solution: Supplied 18,000 ft of ASME B36.19 stainless steel pipe — NPS 6" Schedule 40S, TP316L seamless — with full EN 10204 3.2 certification and NACE MR0175 compliance. PMI verified on every heat.

Result: Zero dimensional failures at inspection; 4-week lead time vs. the 12-week alternative bid; 31% total cost savings including freight. The line has operated for 16 months with no integrity alarms.

Situation: A German engineering firm developing a green hydrogen refueling network needed 7,500 ft of small-bore stainless pipe (NPS 1"–2") with stringent hydrogen embrittlement resistance.

Our solution: Provided ASTM A312 TP304L seamless pipe with ferrite count control and 100% ultrasonic testing. Supplied with PED 2014/68/EU CE certification.

Result: All 42 test welds passed radiography on first attempt; delivered in 5 weeks; saved €38,000 vs. the EU distributor quote. Follow-up order placed 6 months later for additional 12,000 ft.

🔗 Engineering context: Proper branch design is essential in gas piping. As noted in the 2025 Guide to Malleable Pipe Fittings, a standard tee provides a 90° branch from a straight run, while a reducing tee allows a smaller branch without an extra reducer. Matching your B36.19 pipe dimensions to the correct tee fitting prevents stress concentration. For elbows, the R6 failure assessment method — described in the Reference Stress Method for Defective Elbows — shows that pipe bend geometry creates stress intensification via cross-sectional ovalization, which must be accounted for in system design.

Q1: What is the difference between ASME B36.10 and ASME B36.19?

ASME B36.10 covers welded and seamless wrought steel pipe for carbon steel with wall thickness designations like Schedule 40, 80, 160. ASME B36.19 extends the system to stainless steel pipe with the "S" suffix (5S, 10S, 40S, 80S). The "S" schedules have reduced wall thicknesses compared to B36.10 at several sizes — for example, a 6" Schedule 40S stainless pipe has a 0.280" wall vs. 0.432" for carbon Schedule 40. This is because stainless steel's higher strength and corrosion resistance allows thinner walls. Always specify B36.19 for stainless steel pipe, not B36.10.

Q2: Does ASME B36.19 pipe meet ASME B31.3 process piping requirements?

Yes. ASME B31.3 is the process piping design code, while B36.19 is the dimensional standard. They are complementary. Piping designed and installed per B31.3 that references B36.19 dimensions satisfies the code's pressure design and material requirements — provided the material grade meets B31.3's stress tables (e.g., 304L or 316L in Appendix A) and fabrication/NDE per Chapter VI is followed. Our pipe is dimensionally certified to B36.19 and compatible with B31.3 system design.

Q3: What is the minimum order quantity (MOQ) for export orders?

For standard sizes (NPS 1/2"–8") in 304/304L or 316/316L, our MOQ is 1,000 ft (approximately 3,000 kg) for a mixed-size order. For large-bore pipe (NPS 10"+), MOQ is 500 ft per size. Sample orders of 6–10 ft are available for pre-qualification — charged at sample price and refunded on your first full order.

Q4: Can you supply pipe with NACE MR0175 / ISO 15156 compliance for sour gas?

Absolutely. We regularly supply ASTM A312 TP316L pipe to NACE MR0175 (ISO 15156) for H₂S service. This requires rigorous chemistry control — particularly hardness ≤ 22 HRC and ferrite control — plus documentation confirming compliance for each heat. We include NACE documentation as a standard add-on at no extra cost on full container orders.

Q5: What payment methods do you accept for international transactions?

We accept T/T (30% deposit, 70% balance against shipping documents), L/C at sight for large orders, and Western Union/PayPal for samples. For first-time buyers, we also offer escrow service through Alibaba Trade Assurance. All contracts are governed by CIETAC arbitration provisions.

Q6: How do you handle customs valuation and tariff classification for the US and EU?

Our pipe is classified under HS 7304.49 (seamless) or 7306.40 (welded). For US imports, we help with Section 232 tariff exclusion support documentation. For EU imports, we provide EUR.1 or Form A certificates for applicable preferential rates. We partner with licensed customs brokers in both markets to ensure smooth clearance.

Q7: What after-sales support do you provide?

Every order includes a dedicated account engineer, full document package, and technical support for installation troubleshooting. We offer a 12-month workmanship warranty covering manufacturing defects. Claims are settled via credit against your next order or replacement shipping — no disputes typical of our industry.
