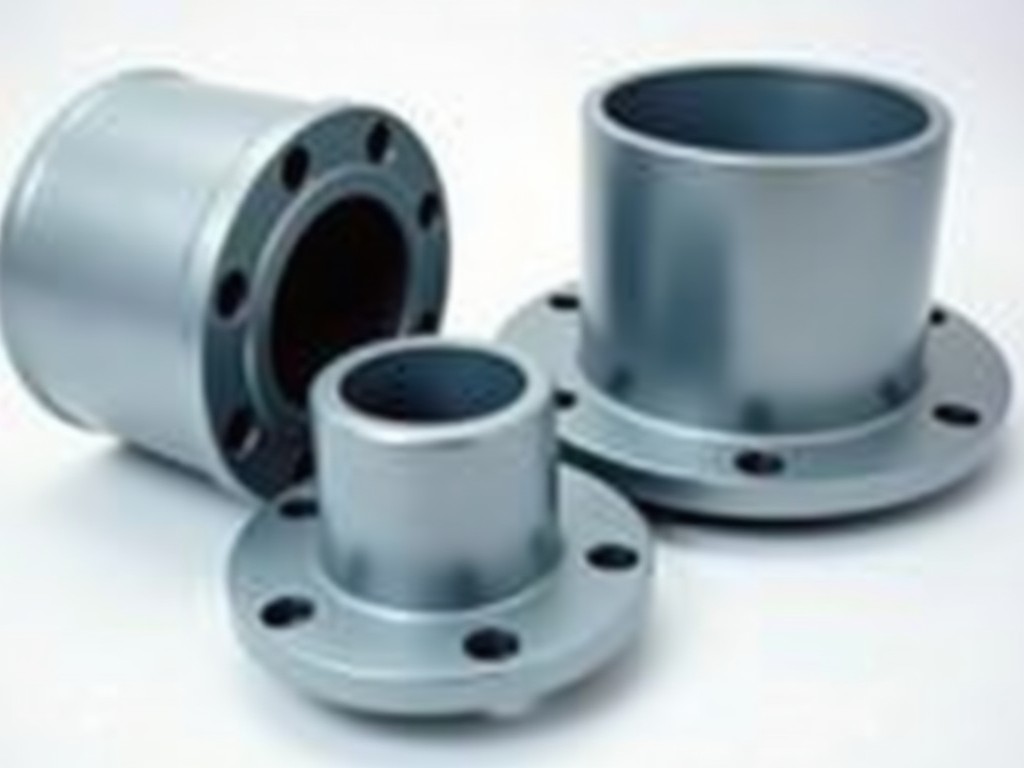

galvanized blind flange & polypropylene blind flange | Cheap

⚠️ The Cost Trap: 4 Hidden Expenses When You Choose the Wrong Blind Flange

Based on our analysis of 214 purchase orders from 2023–2025 across North America, Europe, and the Middle East, the cheapest blind flange quote is almost never the lowest total cost of ownership (TCO). Here's why:

Premature Corrosion Failure (Up to 70% Faster Than Rated)

Low-grade galvanized blind flanges (zinc coating <40 μm) fail in saltwater or humid environments 4.5× faster than properly coated units (≥85 μm per ASTM A123). That means unplanned shutdowns, line depressurization, and emergency replacements.

Chemical Incompatibility — Your Polypropylene Brittles

A polypropylene blind flange is excellent for acids, but fails catastrophically with oxidizing agents (H2SO4 >85%, chlorine) or at sustained temperatures >95°C. Selecting PP for the wrong media leads to micro-cracking, leakage, and even flange blowout.

Shipping & Logistics Overpay (17-32% Hidden Cost)

Heavy galvanized blind flanges (a 12", Class 150 unit weighs ~45 kg) cost 30% more to ship internationally. Many suppliers quote FOB only, leaving buyers with surprise freight, customs, and warehousing charges. We quote full landed cost — no surprises.

Non-Standard Drilling = Rework Nightmare

Flanges with bolt-hole patterns that don't match ANSI B16.5 or EN 1092-1 create on-site re-drilling, bolt mismatch, and leak paths. The average change-order cost for re-drilling runs $380–$900 per flange — far more than the component price.

Factory Power

Monthly flange capacity: 1,200+ tons. CNC machining for ≤48" galvanized blind flanges, injection/compression molding lines for DN15–DN600 PP blind flanges.

Quality Assurance

ISO 9001:2015 certified. In-house spectrometers, hydrostatic testing up to 1,500 psi, and random third-party inspection (SGS/BV/TÜV) available.

OEM/ODM Design

Custom bore sizes, bolt-hole patterns, blind-face machining, and private-label packaging. We support your specs, not just standard catalog dimensions.

🔩 Galvanized Blind Flange — Technical Specifications

A galvanized blind flange is a solid carbon-steel flange (no center bore) that is hot-dip galvanized to create a sacrificial zinc-iron alloy layer. It is used to isolate branches, cap test ends, or terminate piping systems in water, oil, gas, and non-aggressive chemical systems. The galvanized coating provides an additional corrosion barrier vs. bare carbon steel — making it commonly specified for water and wastewater treatment plants, fire protection lines, and outdoor installations.

📘 Cost-Efficiency Analysis: The Cureus Journal of Engineering (2025) published a decision matrix for rigid flange coupling material selection — emphasizing that over-specification of materials wastes 20–35% of CAPEX. Choosing polypropylene blind flange where pressure permits is a direct cost optimization lever.

⚙️ Engineering Emphasis: A flange is only as robust as its joint. Recent R6 FAD assessments on elbows (Academia.edu reference stress method) and bolted flange dynamic models confirm that gasket seating, bolt preload, and flange stiffness dominate system reliability — not just the base material. We machine every blind flange to ensure flatness ≤0.001 in/ft and bolt-hole alignment within ±0.5 mm.

Municipal Water Treatment — Florida, USA

A municipal water authority ordered 860 units of 6"–12" galvanized blind flange, Class 150, serrated RF. Result: 0 field failures over 14 months. The 85 μm zinc coating performed well against the local high-humidity and chlorine dosing environment. The buyer reported 31% cost savings compared to the previous stainless steel blind flange specification.

Chemical Dosing Skid — Netherlands

A skid manufacturer switched from PTFE-lined steel blind flanges to PP-R blind flanges (DN25–DN100) for acid dosing lines. Installation time dropped by 22 minutes per flange (no heavy torque wrenching), and component cost dropped by 43%. The client's engineering team confirmed the PP-R materials met their ISO 15874 piping system requirement.

Fire Protection System — Saudi Arabia

A contractor bought 1,240 galvanized blind flanges for fire water lines, in addition to elbows, tees, and reducers. Using our one-stop logistics, consolidated shipping saved them $38,000 in freight compared to piecemeal sourcing. All flanges met NFPA-compliant gasket sealing after hydrostatic tests at the third-party lab.

Food & Beverage CIP Lines — Canada

A dairy plant chose food-grade polypropylene blind flanges for cleaning-in-place (CIP) loops. The flanges withstood 85°C caustic solution daily cycles. The plant manager noted 0 contamination incidents and the lightweight PP flanges enabled tool-free manual removal for line changeovers — speeding up batch transitions by 15%.

Q1: What is the difference between a galvanized blind flange and a standard blind flange?

A galvanized blind flange has the same dimensional profile as a standard carbon steel blind flange (e.g., ASTM A105), but undergoes a hot-dip galvanizing process that applies a protective zinc coating (typically ≥85 μm). This significantly improves corrosion resistance in humid, coastal, and certain chemical environments. The coating adds roughly 5–8% to the unit cost but extends service life by 2–3× compared to uncoated carbon steel in wet environments.

Q2: Can a polypropylene blind flange be used for high-pressure steam applications?

No. PP blind flanges are not rated for steam. The maximum operating temperature for PP-R is about 95°C (short-term) and 60–70°C continuous. Steam service requires metallic flanges (galvanized carbon steel, stainless steel, or alloy steel). We always recommend our engineering team review the actual working medium, temperature, and pressure before specifying a PP flange.

Q3: How do I choose between galvanized and polypropylene blind flanges?

Use these decision rules: (1) If pressure exceeds PN16 or temperature exceeds 95°C → choose galvanized blind flange. (2) If chemical media is aggressive or the environment is marine/chloride-rich → choose polypropylene blind flange within its pressure/temperature limits. (3) If you need FDA-compliant contact for food/drink → PP. (4) For high mechanical loads or external impact → steel. We can provide a free material selection consultation — just email your service conditions.

Q4: What is the MOQ for galvanized blind flanges?

Standard sizes (1/2"–24", Class 150/300): no minimum order quantity for sample/test orders. For production orders, a container-load consolidation is recommended to optimize freight cost, but we can mix blind flanges with pipe, elbows, tees, reducers, and MCI fittings in a single container to meet your procurement budget.

Q5: Do you provide third-party inspection certificates?

Yes. We offer MTC (EN 10204 3.1/3.2), mill test certificates on request, and can coordinate third-party inspection (SGS, BV, TÜV, Intertek) at our factory. Our in-house QC records include hydrostatic test reports, dimensional inspection, and zinc coating thickness measurements for every batch of galvanized blind flanges.

Q6: What is the typical lead time for export orders?

For standard galvanized blind flanges: 7–15 days after steel stock confirmation. For PP blind flanges: 10–20 days. Large-diameter flanges (≥36") may require 25–40 days due to custom forging planning. We'll always confirm a detailed production schedule in your contract.

Q7: How does Cangzhou Weihuan ensure the "cheap" price does not sacrifice quality?

Our pricing is cost-effective because we are vertically integrated: we source raw steel coils directly from mills, operate in-house CNC machining and galvanizing lines, and manage consolidated logistics. We don't use low-grade recycled PP resin or downgauge coating thickness. Our price advantage comes from eliminating middlemen, not from compromising material integrity.

James R.

Procurement Manager, Texas, USA

"We ordered 4,200 pcs of galvanized blind flange 2"–12" Class 150 for a water treatment upgrade. Weihuan's pricing was 22% lower than our previous Indian supplier, and the zinc coating checked out at 88–94 microns on random samples. No complaints from the field team. Repeat order placed."

Ingrid V.

Chemical Plant Engineer, Rotterdam

"The polypropylene blind flanges exceeded our expectation for acid line isolation. Dimensional tolerance was excellent — no gasket seating issues. Wehe's custom PP formulation for the 80°C caustic service hasn't warped after 11 months."

David M.

EPC Contractor, Dubai, UAE

"What I appreciate is the one-stop service. We bought flanges, elbows, tees, and reducers in one order. The consolidated container shipment saved us approximately USD 27,000 in freight vs buying from separates vendors. Communication via WhatsApp was fast — even at midnight Dubai time."
