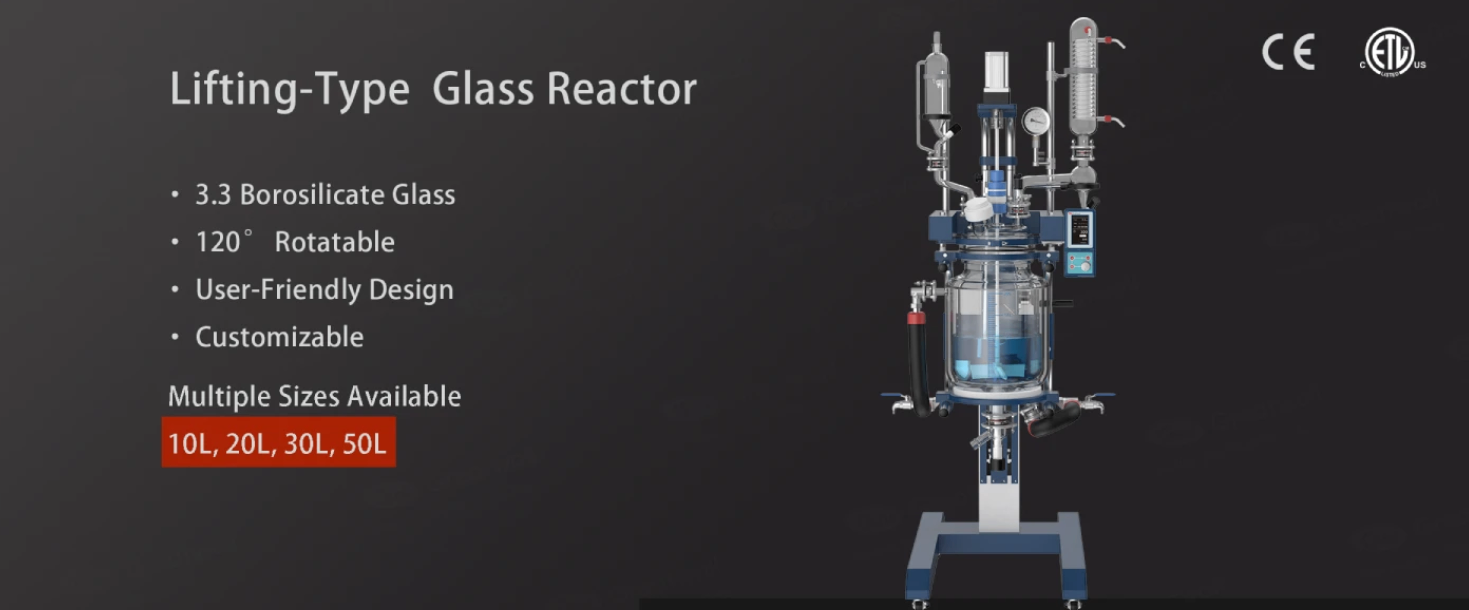

Manual Lifting Glass Reactor (10L-50L)
<p><span style="font-family: "times new roman"; font-size: 16px; color: rgb(0, 0, 0);">Glass reactors are primarily designed for material synthesis, distillation, concentration, and other experimental processes.</span></p>
SupplierYiwu Huosu Trading Companywww.huosulabequipment.com
Source categories
About this product
Product information from the supplier.
Applications
Glass reactors are primarily designed for material synthesis, distillation, concentration, and other experimental processes. The vessel structure is available in single-layer, double-layer, and triple-layer configurations (the outer jacket enables vacuum insulation). The frame material can be customized upon request, including powder-coated metal, stainless steel, titanium alloy, or metal sprayed with PTFE; component configuration can be tailored to process requirements. Both explosion-proof and non-explosion-proof models are available; three-phase asynchronous motors or brushless DC motors can be selected. The vessel interior can be evacuated to negative pressure as needed to meet experimental conditions.]
Technical Features
All glass components are made of 3.3 borosilicate glass with excellent physical and chemical properties.
Operating temperature range: -80°C to 200°C.
Operating pressure range: -0.1 MPa to 0 MPa.
The vessel can be raised/lowered and rotated 120°, facilitating operation and cleaning.
Jacket inlet/outlet ports are connected with stainless steel insulated hoses to eliminate stress at the connections.

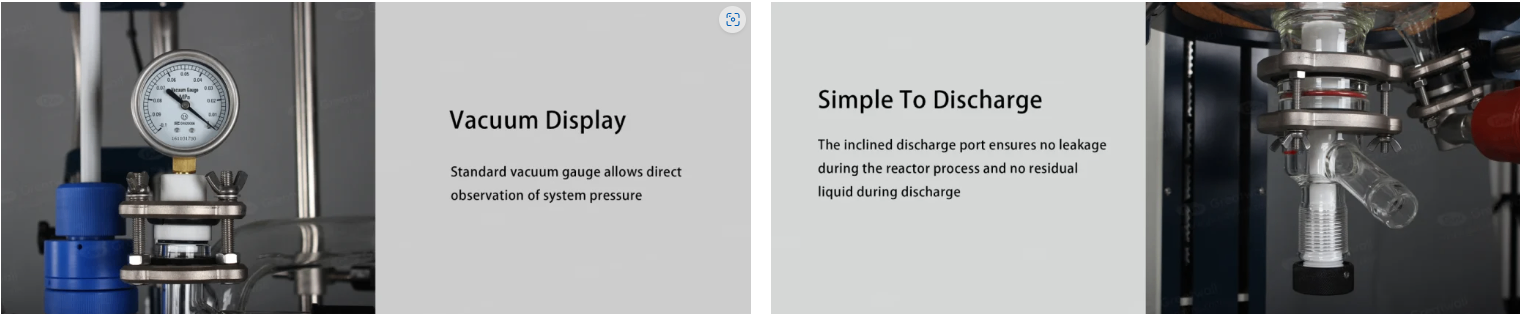

Dead-space-free discharge valve.
Frame constructed from 304 + powder-coated carbon structural steel + powder-coated aluminum alloy, offering strong corrosion resistance and easy cleaning/maintenance; casters with brake devices facilitate equipment mobility and positioning.
Self-developed stirring bearing with excellent sealing performance.
Agitator blade made of PTFE material; agitation shaft made of 304 and wrapped with PTFE, providing high strength and excellent corrosion resistance.
| Model | GRL-10 | GRL-10Ex | GRL-20 | GRL-20Ex | GRL-30 | GRL-30Ex | GRL-50 | GRL-50Ex | |
| Kettle | Kettle | 10 | 20 | 30 | 50 | ||||
| Minimum Working Capacity (L) | ≈1 | ≈1.6 | ≈3.5 | ≈4.5 | |||||
| Jacket Volume (L) | 8 | 9 | 10 | 13 | |||||
| Operating Temperature Range (°C) | -80~200 | ||||||||
| Maximum Internal Pressure | -0.1 MPa to 0 Mpa | ||||||||
| Maximum Jacket Pressure (MPa) | ≤0.03 | ||||||||
| Thermal Shock Resistance (°C) | ≤80 | ||||||||
| Discharge Valve Size | Φ33Hose Connector | ||||||||
| Kettle Cover | Central Opening Size | 50#Flange | |||||||
| Side Opening Size(s) | 50#Flange | ||||||||
| 35×2#Flange | |||||||||
| 24/29Tapered Ground Joint | |||||||||
| Solid Feeding Port | 80#Flange | ||||||||
| Stirrer | Motor Type | Three-Phase Asynchronous Motor | Explosion-Proof Three-Phase Asynchronous Motor | Three-Phase Asynchronous Motor | Explosion-Proof Three-Phase Asynchronous Motor | Three-Phase Asynchronous Motor | Explosion-Proof Three-Phase Asynchronous Motor | Three-Phase Asynchronous Motor | Explosion-Proof Three-Phase Asynchronous Motor |
| Speed Range (rpm) | 50-500 | ||||||||
| Speed Display | Digital Tube | ||||||||
| Display Accuracy | ±1rpm | ||||||||
| Motor Power (W) | 90 | 180 | 90 | 180 | 90 | 180 | 140 | 180 | |
| Speed Control | Variable Frequency Speed Control | ||||||||
| Stirrer Mounting | Vacuum Mechanical Seal | ||||||||
| Impeller Type | Single-layer: Four-pitched-blade Open Turbine | Double-layer: Four-pitched-blade open turbine + Four-straight-blade open turbine | |||||||
| Impeller Material | 304+PTFE | ||||||||
| Power Supply | 220-240V～，50/60Hz | ||||||||
| Dropping Funnel | Capacity (mL) | 1000 | |||||||
| Capacity (mL) | Compatible | ||||||||
| Drip Tray | Compatible | ||||||||
| Integrated Bracket | Lifting stroke（mm） | ≈400 | |||||||
| Lifting method | Manual vessel lifting | ||||||||
| Frame Material | 304+ Spray-Coated Carbon Structural Steel + Spray-Coated Aluminum Alloy | ||||||||
| Jacket Hose Connections | Rc3/4″ | ||||||||
| Sensor Model | PT100 | ||||||||
| Ambient Temperature Range (°C) | 5～35 | ||||||||
| Ambient Humidity Range (%) | ≤70 | ||||||||
| Glass Material | 3.3 Borosilicate Glass | ||||||||
| Overall Dimensions (mm) | ≈850W×1100D×2120H | ≈860W×1100D×2570H | |||||||
| Net Weight (kg) | ≈175 | ≈188 | ≈180 | ≈193 | ≈193 | ≈206 | ≈200 | ≈213 | |
